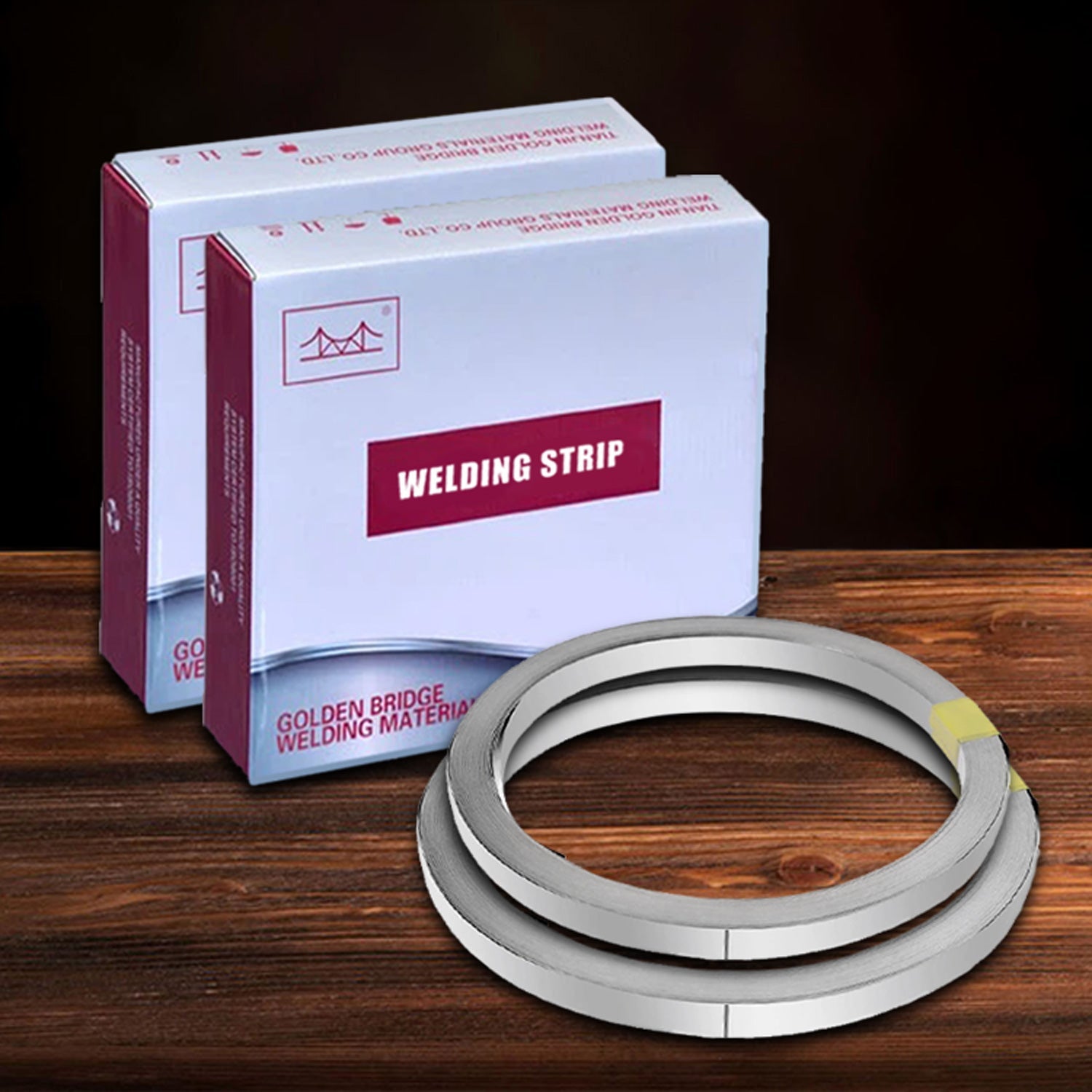

Golden Bridge (Stainless Steel) Welding Strip
Golden Bridge (Stainless Steel) Welding Strip
SKU:STAINLESS-STEEL-04X30-0055
Stainless steel welding tape
Stainless steel strip , working with special sintered-flux, has excellent bead appearance and slag removal performance.
It is used for large-area submerged arc surfacing or electroslag surfacing on the inner surfaces of hydrogenation reactors, primary flow synthesis towers, coal liquefaction reactors and thick-walled pressure vessels of nuclear power plants in petrochemical industry. Working with sintered-flux JQ-SJ34, the surfacing layer has small dilution of base metal, high deposition speed and excellent surfacing layer performance, that is, high quality, high efficiency and low dilution rate.
Strip wire type |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
Nb |
| EQ308 | ≤ 0.060 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 9.0- 12.0 | 18.0- 21.0 | ≤ 0.50 | — |
| EQ308L | ≤ 0.030 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 9.0- 12.0 | 18.0- 21.0 | ≤ 0.50 | — |
| EQ309(A) | ≤ 0.060 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 9.0- 12.0 | 21.0- 23.0 | ≤ 0.50 | — |
| EQ309(B) | ≤ 0.060 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 12.0- 14.0 | 23.0- 25.0 | ≤ 0.50 | — |
| EQ309L(A) | ≤ 0.030 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 9.0- 12.0 | 21.0- 23.0 | ≤ 0.50 | — |
| EQ309L(B) | ≤ 0.030 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 12.0- 14.0 | 23.0- 25.0 | ≤ 0.50 | — |
| EQ309LMo | ≤ 0.030 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 9.0- 14.0 | 21.0-25.0 | 2.0-3.5 | — |
| EQ316 | ≤ 0.060 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 11.0- 15.0 | 17.5- 22.5 | 2.0-3.5 | — |
| EQ316L | ≤ 0.030 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 11.0- 15.0 | 17.5- 22.5 | 2.0-3.5 | — |
| EQ347 | ≤ 0.060 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 9.0- 12.0 | 18.0- 21.0 | — | 8×C% -1.0 |
| EQ347L | ≤ 0.030 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 9.0- 12.0 | 18.0- 21.0 | — | 8×C% -1.0 |
| EQ309LNb | ≤ 0.030 | ≤ 1.00 | 0.5- 2.5 | ≤ 0.025 | ≤ 0.015 | 9.0- 14.0 | 21.0- 25.0 | — | 8×C% -1.0 |
Specification: 0.4/0.5x30/50/60/75/90mm
Packaging form and weight
(1) Bracket-free strip wire pan
(2) Each plate is 25-50kg
Packaging form and weight
(1) Bracket-free strip wire pan
(2) Each plate is 25-50kg
