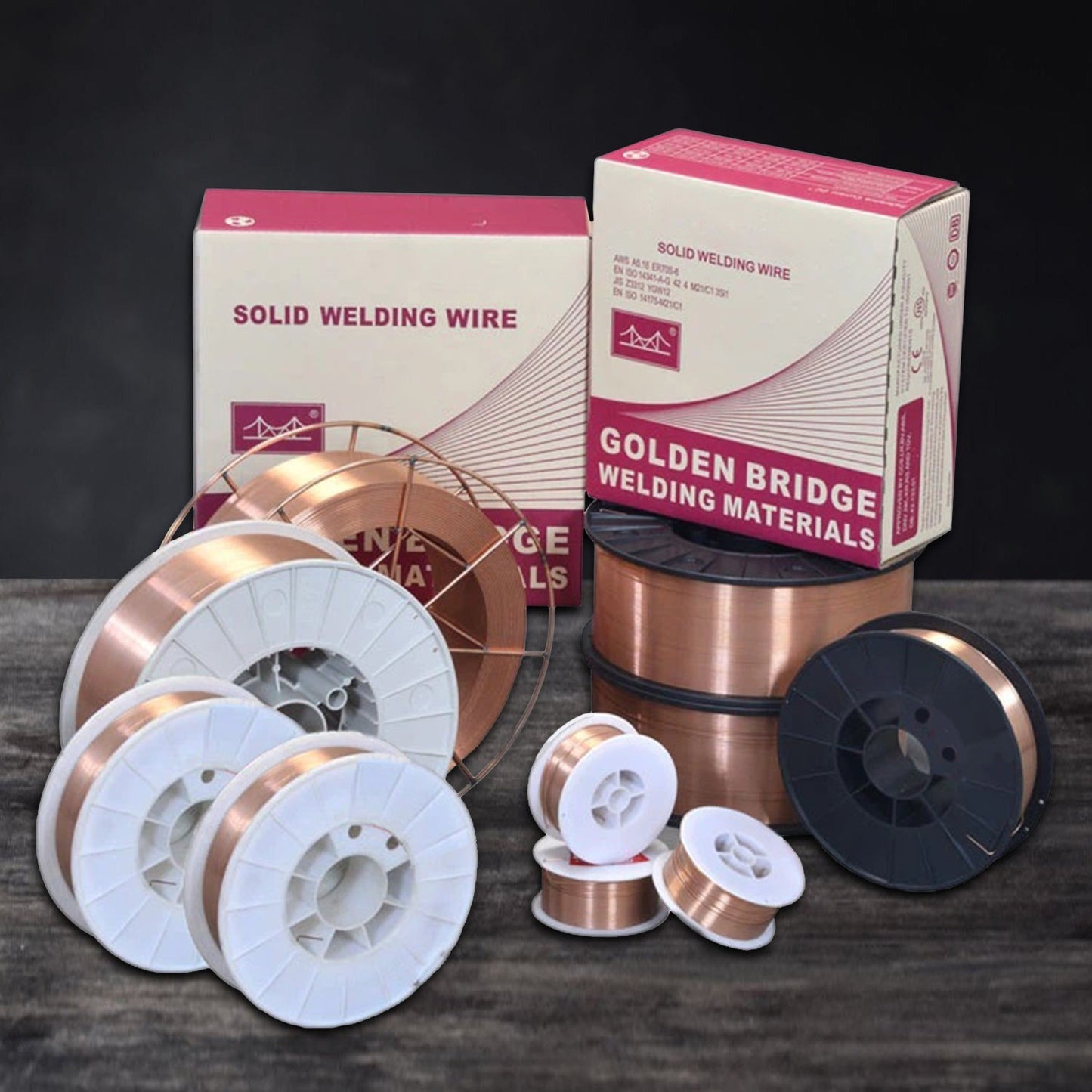

Name: Golden Bridge ER70S-6 (JQ-MG50-6N) MIG Welding Wire
Brand: Golden Bridge
SKU: JQ-MG50-6N-030-02.2
Availability: InStock

JQ-MG50-6N

AWS A5.18 ER70S-6
ISO 14341-A-G 42 4 C1 3Si1

Introduction：

JQ-MG50-6N is a solid welding wire without copper plating gas protection, which has excellent rust resistance, excellent welding manufacturability, smooth arc, low spatter level, good wire feeding and optimal bead appearance. The product is applicable for all-position welding and the deposited metal has good mechanical properties. No copper smoke is produced in the welding process, so it is an environment-friendly welding material.

Purpose：

The product is applicable for welding various carbon steel and low alloy steel with 500MPa tensile strength grade, commonly applied in the fields such as bridges, buildings, automobile manufacturing, mechanical structures, etc..

Chemical components of welding wire: （％）

Item	C	Mn	Si	S	P	Ni	Cr	Mo	V	Cu
Example value	0.077	1.54	0.88	0.011	0.012	0.025	0.011	0.010	0.004	0.014

Mechanical properties of deposited metal (Ar+20%CO₂)

Test item	Rm （MPa）	ReL/Rp0.2 （MPa）	A (%)	KV₂ (J) -40℃
Example value	555	450	29	77, 95, 83

Reference specification (DC⁺)

Specification of welding wire (mm)	Welding current (A)	CO₂ gas flow (L/min)
Φ0.8	50-100	15
Φ1.0	50-220	15-20
Φ1.2	80-350	15-25
Φ1.6	170-550	20-25

Welding Position:

Diameter	* 0.030 inches (0.8 mm), * 0.040 inches (1.0 mm), * 0.045 inches (1.20 mm), * 1/16 inches (1.60 mm)
Package	2.2 lb (1 kg), 11 lb (5 kg), 33 lb(15 kg), 44 lb (20 kg), 550 lb (250 kg), 770 lb (350 kg)

AWS A5 Series Code	American Welding Society (AWS) Standard Title
AWS A5.1	Carbon Steel Electrodes for Shielded Metal Arc Welding (SMAW)
AWS A5.2	Carbon and Low-Alloy Steel Rods for Oxyfuel Gas Welding (OFW)
AWS A5.3	Aluminum and Aluminum Alloy Electrodes for Shielded Metal Arc Welding (SMAW)
AWS A5.4	Stainless Steel Electrodes for Shielded Metal Arc Welding (SMAW)
AWS A5.5	Low-Alloy Steel Electrodes for Shielded Metal Arc Welding (SMAW)
AWS A5.6	Copper and Copper-Alloy Electrodes for Shielded Metal Arc Welding (SMAW)
AWS A5.7	Copper and Copper Alloy Bare Welding Rods and Electrodes
AWS A5.8	Filler Metals for Brazing and Braze Welding.
AWS A5.9	Carbon Steel Electrodes and Fluxes for Submerged Arc Welding (SAW)
AWS A5.10	Bare Aluminum and Aluminum-Alloy Welding Electrodes and Rods.
AWS A5.11	Nickel and Nickel Alloy Welding Electrodes for Shielded Metal Arc Welding (SMAW), Gas Tungsten Arc Welding (GTAW), and Plasma Arc Welding (PAW)
AWS A5.12	Tungsten and Tungsten Alloy Electrodes for Arc Welding and Cutting
AWS A5.13	Surfacing Electrodes for Shielded Metal Arc Welding (SMAW)
AWS A5.14	Nickel and Nickel-Alloy Bare Welding Electrodes and Rods
AWS A5.15	Welding Electrodes and Rods for Cast Iron
AWS A5.16	Titanium and Titanium Alloy Welding Electrodes and Rods
AWS A5.17	Carbon Steel Electrodes and Fluxes for Submerged Arc Welding (SAW)
AWS A5.18	Carbon Steel Electrodes and Rods for Gas Shielded Arc Welding (GMAW)
AWS A5.19	Magnesium Alloy Welding Electrodes and Rods
AWS A5.20	Carbon Steel Electrodes for Flux Cored Arc Welding (FCAW)
AWS A5.21	Bare Electrodes and Rods for Surfacing
AWS A5.22	Stainless Steel Electrodes for Flux Cored Arc Welding (FCAW)
AWS A5.23	Low-Alloy Steel Electrodes and Fluxes for Submerged Arc Welding (SAW)
AWS A5.24	Zirconium and Zirconium-Alloy Electrodes and Rods for GTAW, GMAW, PAW (Plasma Arc Welding)
AWS A5.25	Specification for Carbon and Low-Alloy Steel Electrodes and Fluxes for Electroslag Welding (ESW)
AWS A5.26	Specification for Carbon and Low-Alloy Steel Electrodes for Electrogas Welding (EGW)
AWS A5.27	Specification for Carbon and Low-Alloy Steel Electrodes and Rods for Gas Shielded Arc Welding
AWS A5.28	Specification for Low-Alloy Steel Electrodes and Rods for Gas Shielded Arc Welding
AWS A5.29	Specification for Low-Alloy Steel Electrodes for Flux Cored Arc Welding (FCAW)
